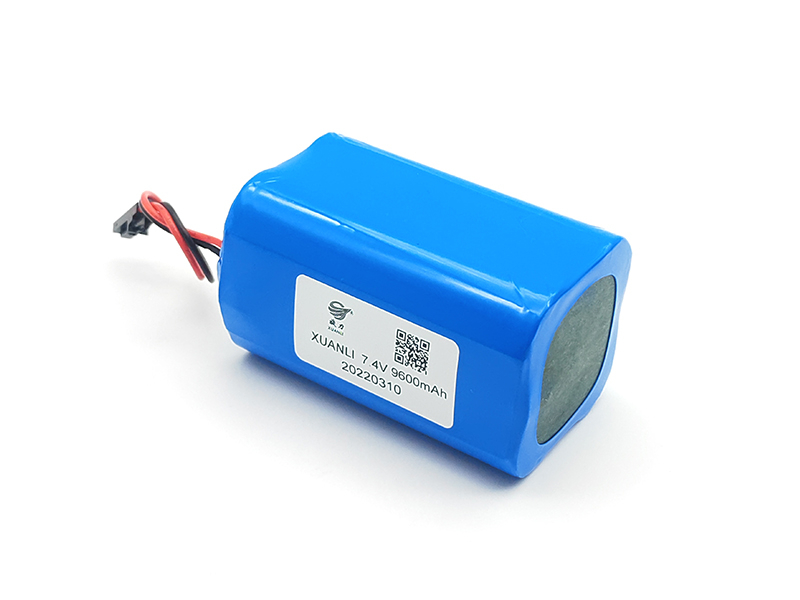

7.4V cylindrical lithium battery product model: XL 7.4V 9600mAh
7.4V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 21700
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 7.4V
·Capacity of single battery: 5.8Ah
·Battery combination mode: 2 strings 3 parallels
·Voltage range of battery after combination: 5.0~8.4V
·Battery capacity after combination: 9.6Ah
·Battery pack power: 71.04Wh
·Battery pack size: 42*43*71mm
·Maximum discharge current: < 9.6A
·Instantaneous discharge current: 18~28A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
7.4V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
